  1. Refer Navigate Mobile View to access the Mobile View.
  2. To ensure your dashboard is displayed correctly in the RubiSight Mobile Application, you need to configure the Mobile View.
  3. Charts can be organized in any desired layout, independent of the layout configuration defined in the Edit mode/Desktop View of the dashboard. This allows flexibility in how charts are presented, ensuring the best possible visual experience based on your needs.
  1. This page is divided into three main sections:

  1. Chart picker panel (Right Side Panel)
  2. Canvas (Middle Panel)
  3. Formatter Panel (Left Side Panel)

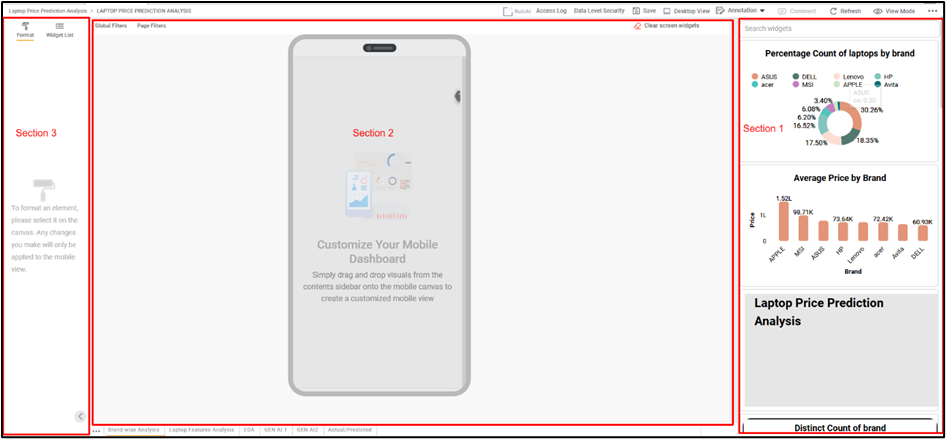

Refer below image:

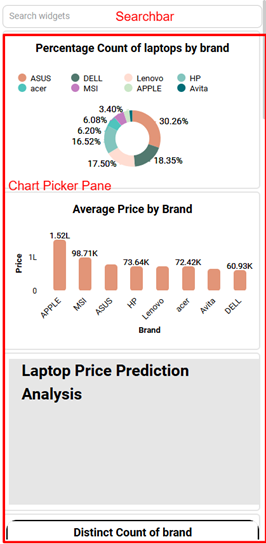

  1. Chart Picker Pane (Right Panel)

  1. Chart Picker Pane is available on the right side of Mobile View screen.
  2. Displays all chart widgets available on the respective page, as configured in the Desktop View, along with their corresponding formatting.
  3. The charts are arranged vertically (one below the other) and fitted into predefined, uniform sizes for all chart types. Therefore, the layout sizes may differ from those in the Desktop View.
  4. The sequence or order of chart display may differ from that in the Desktop View.
  5. The search bar in this pane allows users to find a specific chart based on the widget name defined at the Desktop View level.

  1. Mobile View Canvas (Middle Panel)


  1. This is the working area where you can place and arrange the charts for the mobile layout.


​
Mobile Dashboard Canvas – Label Details

​

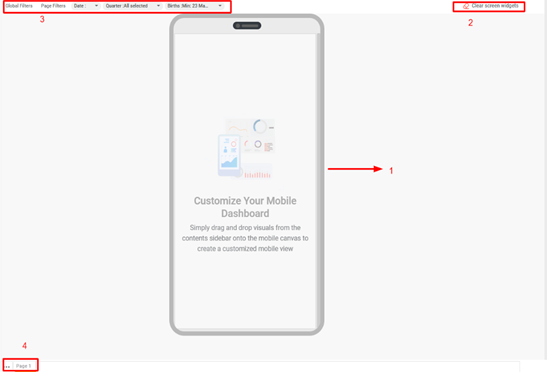

Label 1 -
Mobile View Canvas:

  1.       The central work area wherein you can drag and drop widgets to configure your page layout for mobile view.
  2.       The configured layout will be visible in the Mobile Application for the respective page.
  3.      The chart in the chart picker pane can be added in the canvas area to configure Mobile View layout. There are 2 options- Drag and Drop chart from chart picker pane to canvas area or double-click the chart from chart picker pane to add it in the canvas area.
  4.      Adding of chart on canvas from the chart picker pane removes it from the chart picker pane and vice versa.
  5.      This pane/Chart picker pane always shows the data as per the current/latest saved configurations of the chart.

​
Label 2 -
Clear Screen Widgets:
  1. Use this option to remove all the widgets from the mobile canvas area. The removed widgets get added to the chart picker pane and make them available for further configuration.

​
Label 3 -
Filter Pane:
  1. Provides option to access Global/Page/Widget-level filters which are applied as in Desktop View. Adding new filter or update in filter is not allowed from Mobile View.

​
Label 4 -
Dashboard Pages:
  1. Allows navigation between different pages configured within the dashboard.



  3. Formatter Pane (Left Panel)

            This is the pane for chart format configuration and accessing widget list options.

Formatter Pane: Displays Format and Widget List options as in Desktop View.

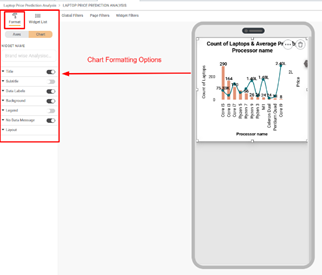

Format:
  1. This option is specific to an individual chart and appears when you click the chart in the Mobile Canvas area.
  2. It displays all available formatting options for the selected chart within the Mobile View Canvas.
  3. Note that only selected formatters from the Desktop View are available for chart formatting in Mobile View.
  4. The formatting applied in the Desktop View is carried over to the Mobile View for the same chart. It can then be further customized using the available Mobile View formatting options. When a chart is initially added to the Mobile View Canvas, it inherits the formatting saved in the Desktop View, which is also reflected in the chart picker pane for that chart.
  5. If a chart is removed or cleared from the Mobile View Canvas, any formatting changes made in Mobile View are discarded, and the chart reverts to its original Desktop View formatting.
  6. For configured charts in Mobile View, the updates in the formatting from the Desktop View will not impact and retains same formatting.
  1. Once you have configured the chart in the Mobile View Canvas, the updates in the chart formatting from the Desktop View if not affecting the chart formatting in the Mobile View Canvas and retains same formatting.
  2. Chart removal from Desktop View will remove the chart from the mobile view canvas pane.

Widget List
  1. This is the list of charts available on the respective page and are the names of charts as set in the chart formatting.
  2. The sequence in the widget list decides the layer in the chart lies with the top chart in the list appearing top of all the charts on the page and vice versa.
  3. The sequence can be changed by drag and drop of chart names in the Widget list.
