Highlight in Table based on another column
The Highlight is configured with condition based on constant
or another column in the configuration.
The Highlight based on another column configuration is done
as below:

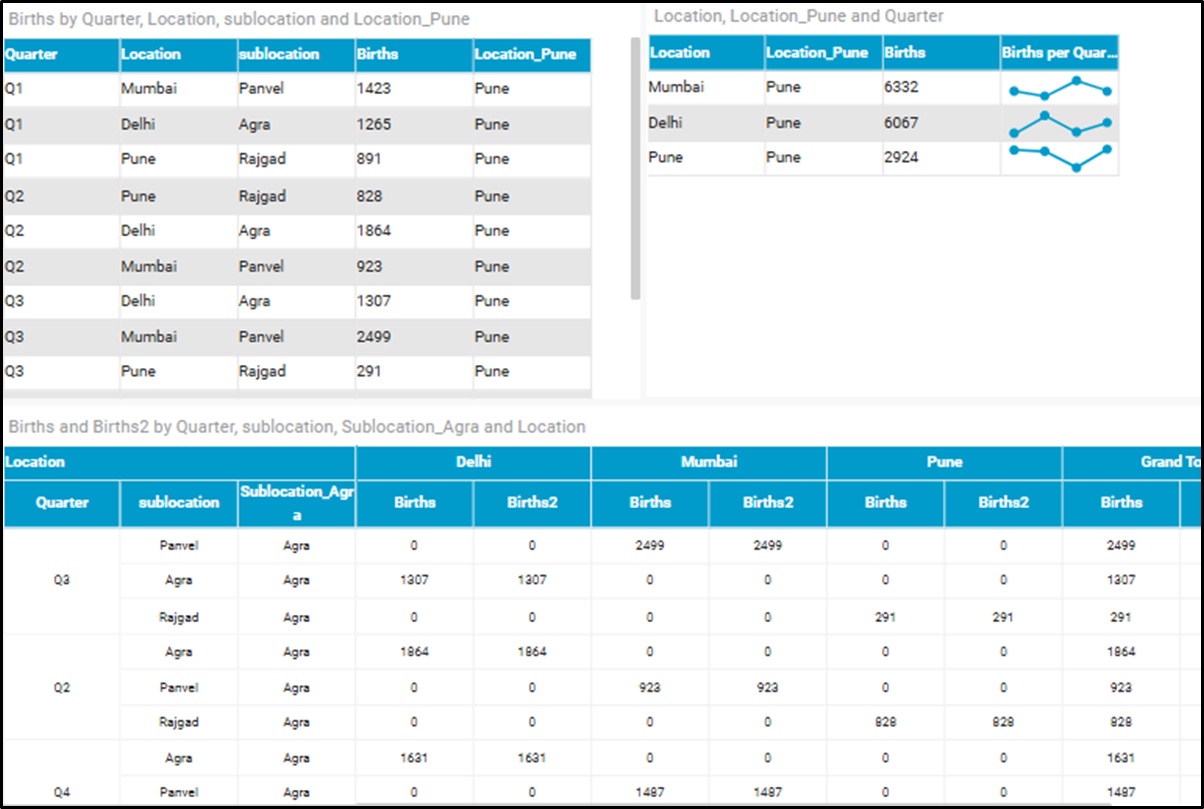

The chart data before adding highlight condition is
displayed as below for Table, sparkline, Cross Table charts.

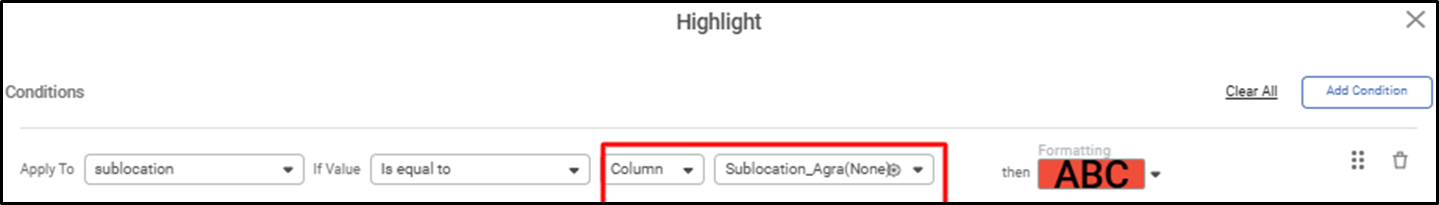

The table and sparkline charts are configured with Highlight
condition with condition based on Column configuration:

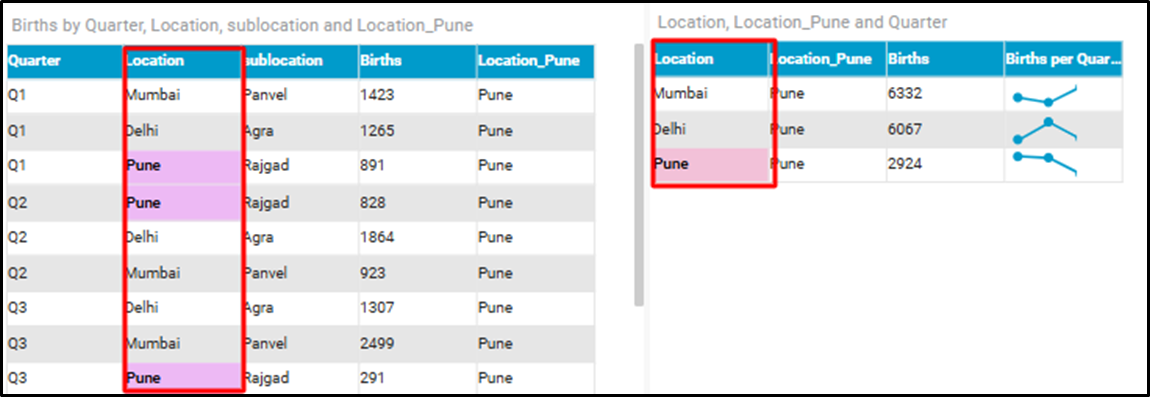

The charts after this formatting are displayed as:
The values in Location column are Highlighted based on the
added condition comparing data in Location_Pune column.
For cross table chart, the highlight conditions are applied
as below:

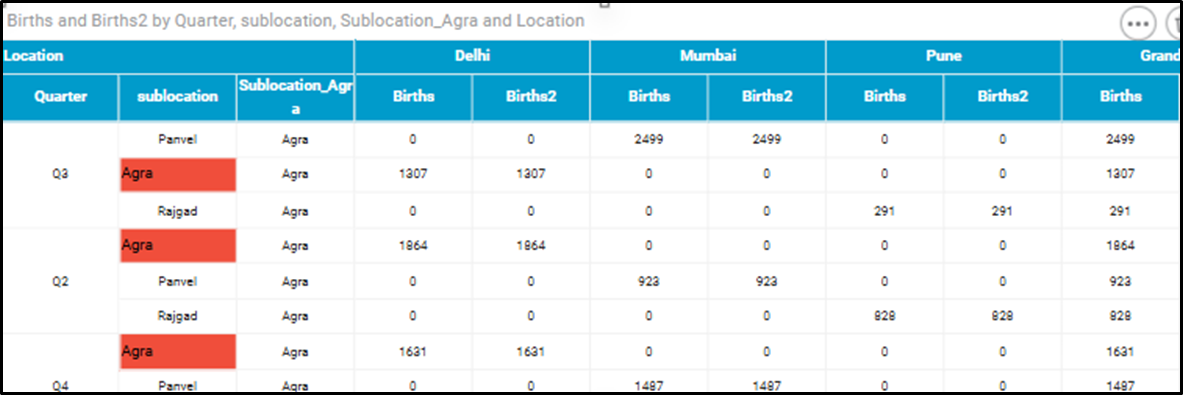

This results chart data with Highlighted values in the
columns.
