Generate and Plot Charts

Generate and Plot Charts


Generate and Plot Charts

RubiAI lets you generate the chart based on user prompts and also enables user to plot the chart in the Rubisight dashboard.
Generate and plot option is available from Edit mode of the dashboard. From view mode user can generate the charts based on the prompt with the column names.
1.     Navigate to RubiAI Insights pane.
2.    Add the prompt to generate and plot chart with the columns from the set dataset for RubiAI.
3.     Click Generate button.
4.    Review the visual and if satisfied with the generated chart, click ‘Plot Chart’ option to add this chart on the respective current page of the dashboard. Note below points wrt the generated chart:
  1. The best suitable chart for the identified columns from the prompt is generated and displayed in the side pane showing the brief insights of chart below it.
  2. The ‘Plot Chart’ option is available from only Edit Mode of the dashboard.
  3. Best suitable chart is generated for the mentioned columns.
  4. This chart is having same formatting as for the chart plotted manually.
5.   Update/Format the chart if required further changes.

Example:

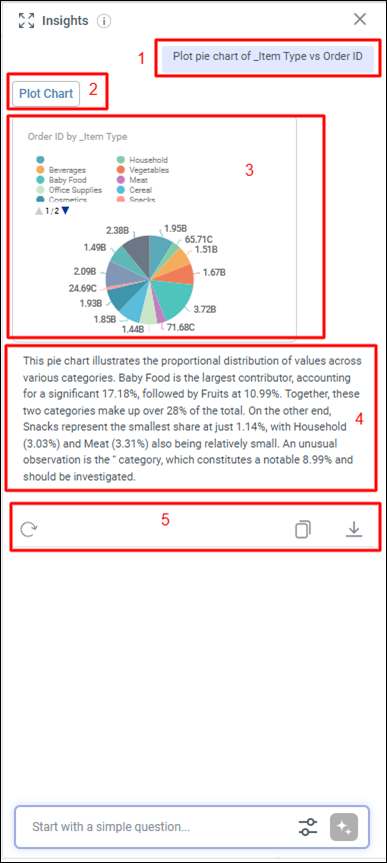

Adding query as below generates the chart and shows the narration on plotted widget below it.

A screenshot of a computer AI-generated content may be incorrect.


The label denotes as follows:

1-     Prompt by the user
2-     Plot Chart button to add the chart to the dashboard current page
3-     Generated Chart
4-     Chart summary
5-     Options to handle the response further

You can further handle the respective latest response with the available options as below:

Refresh

This will regenerate the response for the prompt.

Copy

Copy the generated summary to clipboard

Download

Download the summary as pdf file












Limitations


  1. The table charts generated and plotted on dashboard page are not added with Title
  2. Currently, column referencing may or may not match if not added exactly.
  3. The context of previous conversation in the side pane is not considered for successive prompts.
  4. The conversation or response in the side pane will disappear on page refresh and not stored anywhere for the retrieval.
  5. The querying based on image/html/python/map/google map/filter widget/parameter widget is not supported.
  6. The summary displayed below all types of table charts is currently given considering first 500 data points plotted in the chart.
  7. Prompt added with multiple chart type references considers the first mentioned chart type for processing.
  8. The chart configuration suggestions in table for suggested charts is not shown with the aggregations for the column.
  9. The querying based on the associated datasets and context based on more than 2 datasets is not supported and may not respond to the accurate data as expected.
  10. Only data displayed on the dashboard charts is considered for answering the queries of data processing.
