Support Advance Sort with Grand Total Column in Cross Table

Support Advance Sort with Grand Total Column in Cross Table

Refer Advance Sort for configuring sorting on the widgets.

Cross Table has additional configuration in Advance Sort, to add sorting condition based on the Column Grand Total.

To understand the configurations, follow the below steps:

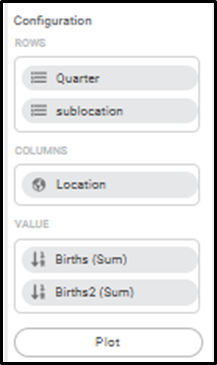

1.     Plot cross table, ex. Below configuration

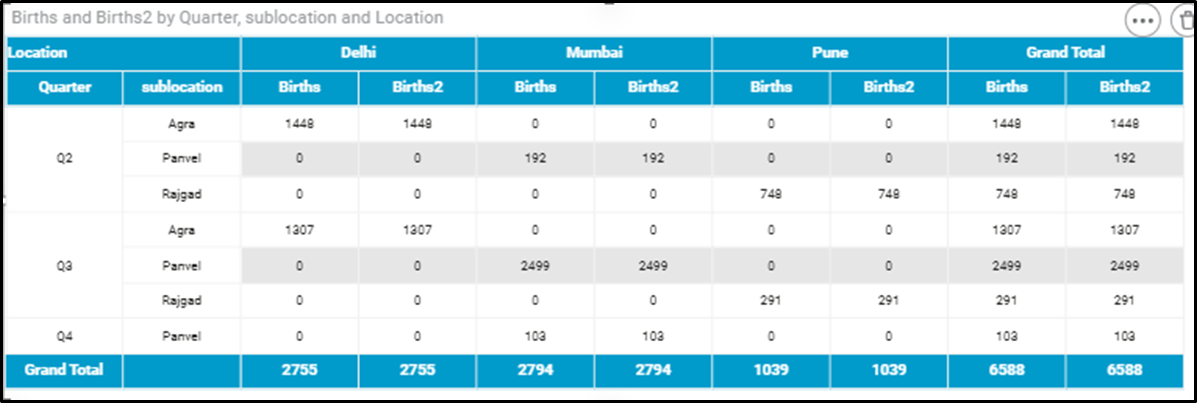

The plotted chart shows data as below:

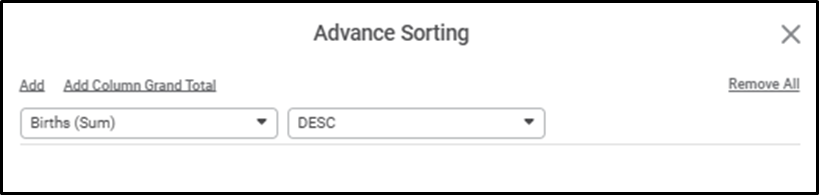

2.     Navigate to Advance Sort options. The additional option is displayed with name- Add Column Grand Total.



3.     On click of -Add Column Grand Total, the sorting level is added.

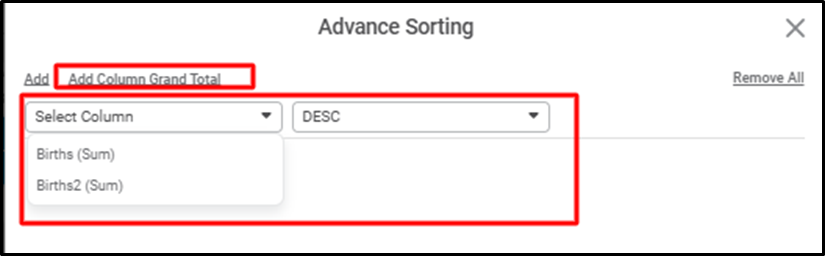

4.     On click of Select Column dropdown, the column/s configured in the Value configuration are displayed. Select any column.

5.     Set the sorting level as Descending or Ascending.

6.     Click Apply.

7.     Observe the chart data. Data in the Column Grand Total Column (Births-Sum) is displayed sorted in Descending order considering entire row values.

Notes:

o    The sorting levels can be added on any number of columns in the value configuration with different sorting.

o    The sorting on -Column Grand total Column can be combined with the sorting on other dimension columns in the configuration.
