Configuring RubiAI Model in Administrator Application

Configuring RubiAI Model in Administrator Application


  1. RubiAI Model Configuration allows administrators to connect Rubiscape with Large Language Model (LLM) providers such as Gemini.
  2. Once configured, RubiAI features become available across Rubisight and Rubistudio for Designer Assistant, widget insights, commentary generation, and Prompt Studio.
  3. This is a tenant-specific configuration and must be set once per tenant.

Accessing the RubiAI Model Configuration:

    - This option is available to Administrators under:
        Navigation: Left Menu → Rubi AI Model Config

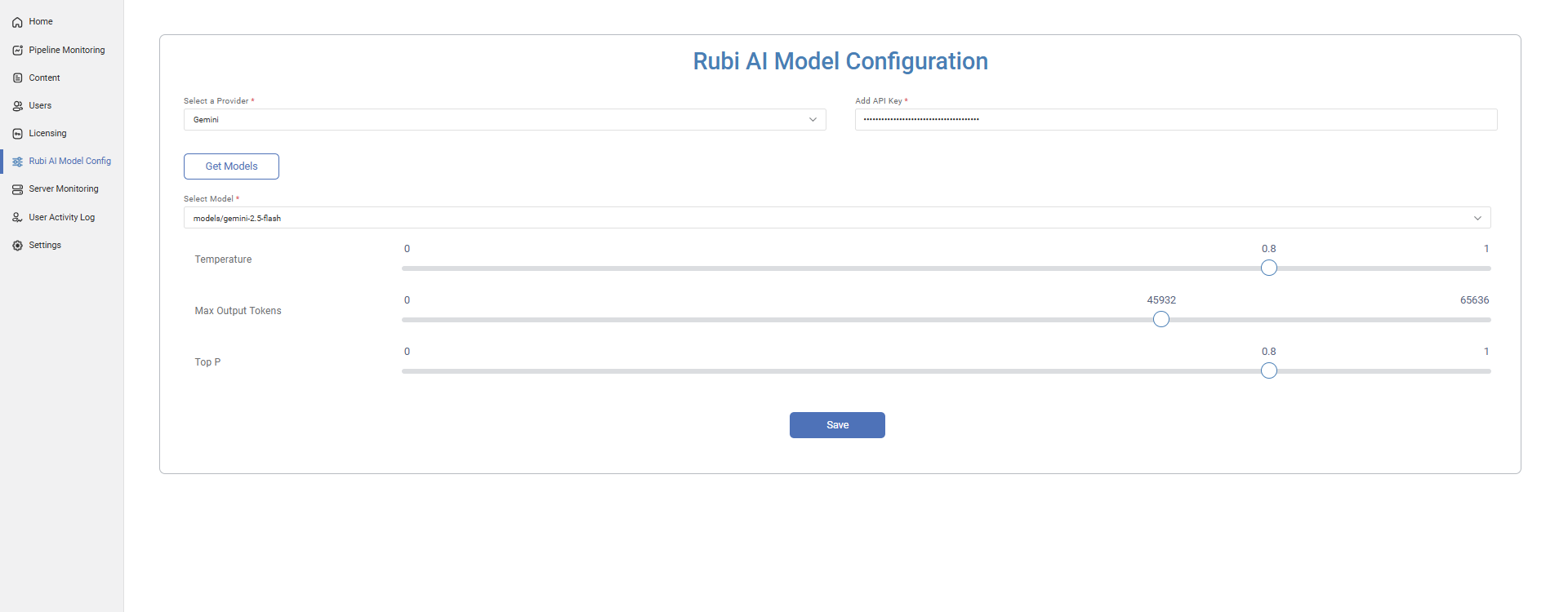

    - The configuration screen displays provider options, API key fields, model selection, and tuning parameters.


Steps to Configure RubiAI Model:


    1. Select an LLM Provider

        - The “Select a Provider” dropdown lists all available Large Language Model providers.
        - Currently supported provider: Gemini.
        - Select the provider you wish to use for your tenant.

    2. Add API Key

        - Enter the API key associated with your LLM provider account.
        - This key enables the system to authenticate and retrieve model information.
        - Ensure that the API key is valid and active.

    3. Click the “Get Models” Button

        - After entering the API key, click “Get Models.”
        - The system will fetch and display the list of available models provided by the selected LLM vendor.
        - Models may include variants with different capabilities such as flash, pro, reasoning, or high-context versions.

    4. Select a Model

        - Choose a model from the dropdown as per your requirement.
        - Model selection determines:
            - Response performance
            - Output detail level
            - Token limitations

    5. Set Model Parameters

        - Configure tuning parameters for the selected model:
            Temperature:
                - Controls creativity and randomness of responses.
                - Lower values produce deterministic outputs.
            Max Output Tokens:
                - Determines maximum token count for generated responses.
            Top P:
                - Controls sampling diversity using nucleus sampling.

        - Adjust sliders as needed based on your use case.

    6. Save the Configuration

        - Click the “Save” button to apply the settings.
        - These settings become active immediately for the tenant.

Behavior After Configuration:

    - Once configured successfully, RubiAI features across Rubiscape become enabled, including:

        Rubisight:

            - Designer Assistant
            - Widget narration
            - Dashboard commentary
            - Widget insights

        Rubistudio:

            - Prompt Studio


Notes for Administrators:

    - This configuration is tenant-specific; each tenant must configure RubiAI separately.
    - API keys are provider-specific and should be kept confidential.
    - Model parameters can be updated anytime if your use case changes.
    - Ensure you have active billing/subscription where required by the LLM provider.
    - If the API key becomes invalid or expires, AI features will stop functioning until updated.

Summary:

  1. Configuring the RubiAI model enables seamless use of AI functions across Rubiscape’s analytics tools.
  2. Administrators must select a provider, add an API key, fetch available models, select an appropriate model, tune parameters, and save the configuration to activate RubiAI capabilities for the tenant.
